2002 Silverado, Phoenix Gold Outlaw/Bandit, Eclipse and JL

Ok so I never finished my Blazer because I knew I would be buying a new truck, I finally got that truck. I purchased a 2002 Silverado extended cab from a freind, the truck was his project and now it is mine to finish. I got it for the screaming deal of $5,000, and all it really needs is the paint and bodywork finished.

Here is the truck before he started the bodywork



Here is what the truck looks like now. Shaved everything!







So onto the system, my goal is to keep it simple and cool. I love old school american made amps and thats where the cool will be, 1 Phoenix Gold Outlaw and 2 Bandits. The system will currently have no additional processors other than whats in the head unit, that is the simple.

So the truck came with a full JL system, I will re-use the speakers but the amps were sacrificed to fund the Outlaw/Bandit combo.

Here is the system list:

Eclipse 7200 MKII (with HD and Sirius tuners)
Phoenix Gold Outlaw (M100 on bass and M50 on midbass)
Phoenix Gold Bandit Left (Left tweeter and mid, bi-amped using passive xover)
Phoenix Gold Bandit Right (Right tweeter and mid, bi-amped using passive xover)
JL Audio XR525csi 5.25 mid and tweeter
JL Audio XR650 midbass
JL Audio 10W6V2 in a pair of stealthboxes

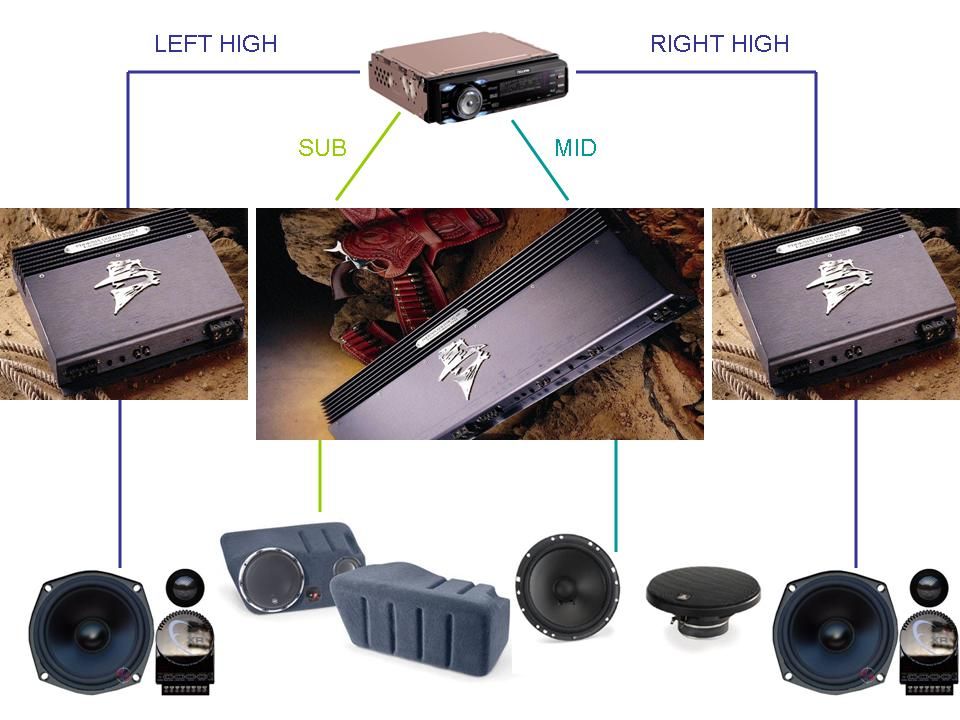

Here is the system layout



The truck is hopefully going into paint by next week and then back to me for a full sound deadening including Ensolite and MLV. The system goal is stealth with midbass in the factory door locations and mids and tweets in the kick panels. The stealthboxes will be under the seat, with the amp rack behind the seat.
